MEM-4750:   ASI / TSoIP (Ethernet) Network Interface Adapter

FEATURES:

      ASI to TSoIP, or TSoIP to ASI conversion.
      Set up as either a Transmitter or Receiver.
      Supports enabling of Forward Error Correction (FEC).
      IP de-jittering.
      UDP or RTP encapsulation.
      DIP switch or SNMP software monitoring and control.

Brochure

User Manual

GENERAL:

The MEM-4750 is a Transport Stream over Internet Protocol (TSoIP) converter that acts as a gateway between an ASI and an Ethernet network environment.

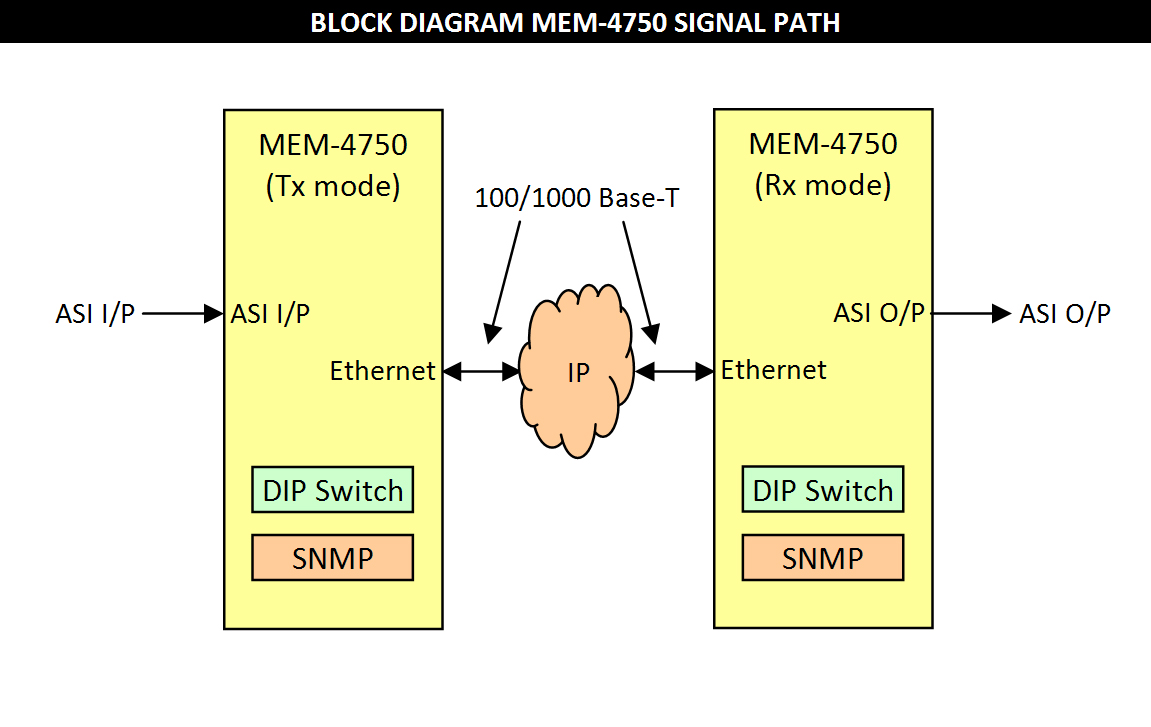

The MEM-4750 is designed to operate independently as either a transmitter (ASI to TSoIP) or receiver (TSoIP to ASI) or can be used as a pair with one unit at each end of an Ethernet link.

When configured as an ASI to TSoIP converter (transmitter mode), the input ASI stream is encapsulated into either UDP or RTP Ethernet packets with controlled scheduling of IP packets to prevent IP jitter. Forward error correction (FEC) in accordance to SMPTE 2022-1 can also be added to the conversion when in RTP mode.

An interesting application for the transmitter mode is for visual monitoring of the ASI stream's content on an Ethernet link by third party software, such as by VideoLAN's VLC media player (for a single content ASI stream) downloadable as a free download from the internet.

When configured as a TSoIP to ASI converter (receiver mode), the MEM-4750 accepts unicast and multicast IP streams over its Gigabit Ethernet port. The UDP or RTP packets are de-encapsulated with IP jitter removal and error correction applied as per SMPTE 2022-1. The resultant output being either a 188 or 204 byte (settable) ASI signal.

The Ethernet port has automatic MDI/MDI X detection, this detects whether the Ethernet interconnect cable is a straight through or cross over type and automatically switches itself to accommodate, and will automatically select the link speed of the connected network (100/1000Mb/s).

All parameters are set via a preset range of DIP switch settings, or via a Simple Network Management Protocol (SNMP) system.

The MEM-4750 is designed to fit IRT's standard 1000 and 4000 series Eurocard frames and may be used alongside any other of IRT's analogue or digital Eurocards.



TECHNICAL SPECIFICATIONS:

Input/Output:
Type
1 x ASI, BNC connector.
Transport Stream Bit Rate
0.01 to 214 Mb/s.
Packet Size
188/204.
Impedance
75 Ohm.
Return Loss
> 15 dB @ 270 MHz.
Equalisation
 > 250 m at 270 Mb/s for Belden 8281 or equivalent cable.

Ethernet:
Type
Standard IEEE 802.3a.
Data Rate
100 Mb/s or 1 Gb/s, automatic.
Connector
RJ-45.
Ethernet Encapsulation
IEEE 802.2 SNAP and Ethernet II.
IP Support
IPv4.
IP Address Assignment
DHCP, DIP switch local or static.
Multicast Support
IGMP v2.

Transport Stream Input/Output over IP:
TSoIP Encapsulation
UDP or SMPTE 2022-2.
Input-to-IP Delay
≤ 1 ms.
IP-to-Output Delay
1 to 1201 ms (programmable).
IP Input Jitter Tolerance
1 to 1202 ms (computed).

UDP:
TS Packet Size
188 or 204 bytes.
TS Packets per IP Packet
1 to 7.

SMPTE 2022-2:
Transport Protocol
RTP.
Forward Error Correction (FEC)
SMPTE 2022-1.
Packet Size
188 or 204 bytes.
TS Packets per IP Packet
1 to 7.
FEC Size L
1 to 20.
FEC Size D
4 to 20.
FEC Size LxD
4 to 100.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.
Power consumption
< 5 VA.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
For mounting in IRT 19" rack chassis with input, output and power connections on the rear panel.

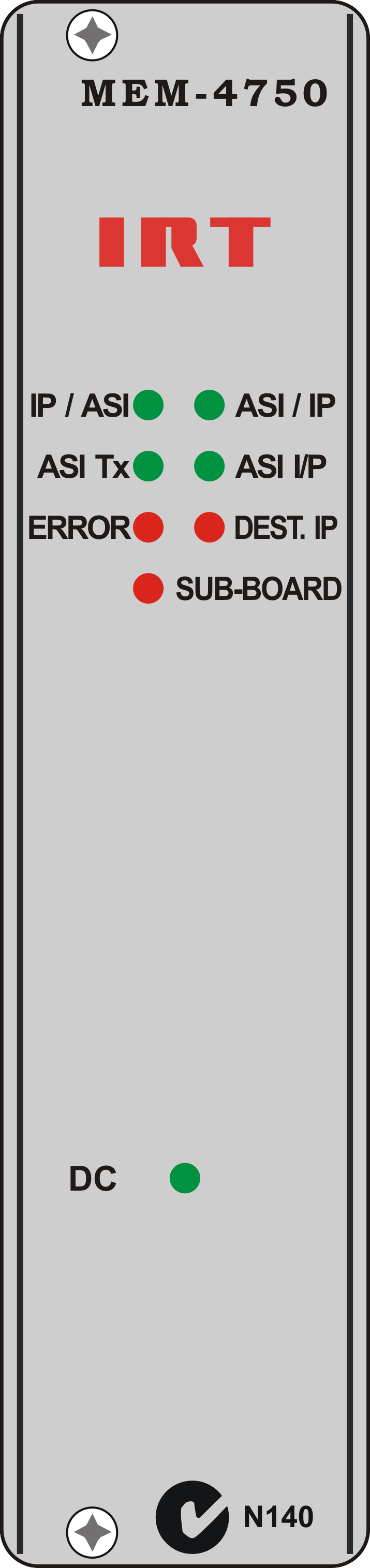

Finish:             Front panel
Grey background, black lettering & red IRT logo.

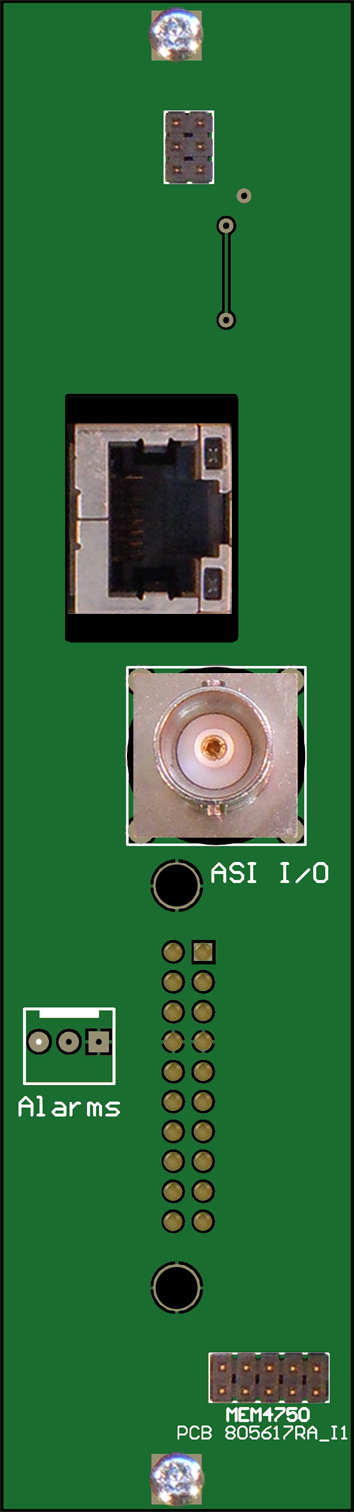

                        Rear Panel
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.

                        NOTE:     1
Maximum delay depends on input bitrate and number of TS packets per IP packet.
                                       2
Maximum jitter tolerance depends on programmed IP-to-output delay and on FEC delay.







Due to our policy of continuing development, these specifications are subject to change without notice.
